Interfloor

Belt Conveyor

High quality inclined floor to floor belt conveyors. Interfloor belt conveyors perfect for conveying products to mezzanine floors!

Product Overview

Drive TypeCentre drive unit
Drive power options (kW)0.75 kW braked motor
Frame MaterialMild steel or Stainless steel
Frame FinishMild Steel = Powder coated
Stainless Steel = Self colour
Frame DetailBed depth options = 140mm & 142mm
Idle Roller Diameter Options115mm
Drive Roller Diameter Options160mm rubber lagged
Belt material optionsGrip top & longitudinal belt
Max floor heightBespoke, choose your height
Standard degree of incline20 degree, 25 degree & 28 degree
Standard belt width options450mm, 600mm, 750mm, 800mm, 900mm & 1000mm
Series options / accessoriesInclined conveyor
Terminal nose over option
1,000mm nose over option
1,000mm horizontal infeed option
Safety pop out rollers
Various speed options
Variable speed control
Bespoke electrical control panels
Stop, start & emergency stop buttons
Photo electric cells & bar code reading,
Side guides
Can be joined by other conveyors to make system
Underguarded as standard

Accessories & Features

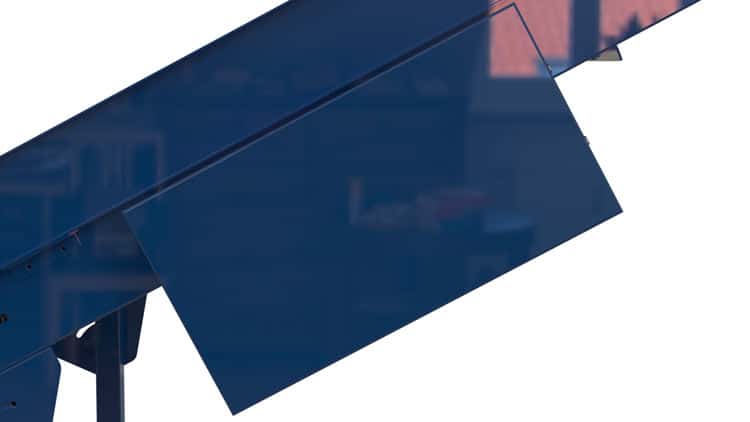

  • Robust Drive Unit

  • Pop Out Roller

  • Photo Cells & Bar Code Reading

  • Various Control Function Options

  • Various Electrical Controls

  • ICDU

  • ICDU - View 2

  • ICDU With Track Top & Bottom

  • High Strong Side guides
