CDU Belt Conveyor

Robust centre drive belt conveyors. Perfect for the rigorous demands of the post & parcel, distribution & logistics industry!

Product Overview

Drive TypeCentre drive unit
Drive power options (kW)0.25, 0.37, 0.75 kW
Frame MaterialMild steel or Stainless steel
Frame FinishMild Steel = Powder coated
Stainless Steel = Self colour
Frame DetailBed depth options = 140mm & 142mm
Idle Roller Diameter Options50mm, 63mm, 89mm, 115mm
Drive Roller Diameter Options115mm & 160mm
Belt material optionsSmooth top, Grip top & longitudinal – various colour options
Minimum Standard Length1,200mm
Max standard length28,000mm
Standard belt width options200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1200, 1250, 1300 & 1350mm
Series options / accessoriesHorizontal conveyor
Inclined conveyor
Straight modules
30, 45, 60, 90 & 180 degree bends -DRIVE CHANGES TO SMD
Safety pop out rollers
Various speed options
Variable speed control
Bespoke electrical control panels
Photo electric cells, bar code reading, emergency stops etc
Braked motor
Rubber lagged drive roller
Side guides – fixed & adjustable
Lift up access gate (gas assisted)
Fixed support stands
Mobile support stands
Twin & Multi-Tier Support stands
Underguard as standard

Accessories & Features

  • Adjustable Guides

  • Belt Bend

  • Belt Gate

  • Fixed Support

  • Mobile Support

  • Photo Cell

  • Pop Out Roller

  • Side Guides

  • Twin Tier

  • Various Electrical Controls

  • Without Stands

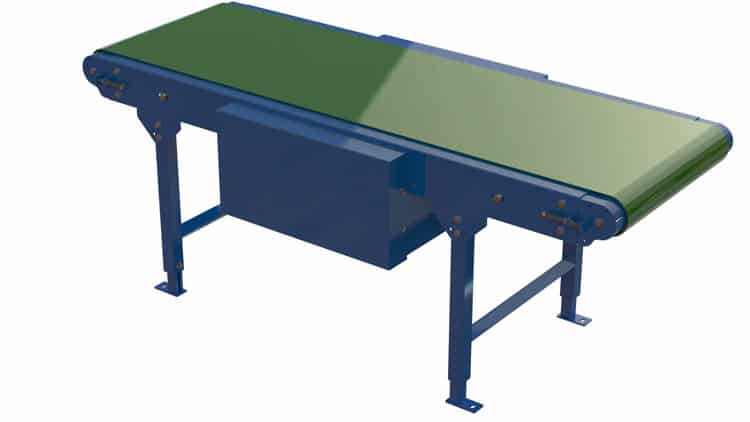

  • With Stands
