200 Series Gravity Conveyor

Light duty stainless & mild steel framed gravity roller conveyor. Perfect for conveying small products, small rollers at close pitch!

The 200 Series Gravity Conveyor is a gravity miniature roller conveyor. It is perfect for conveying small items, as a tight pitch can be achieved in this conveyor range.

Designed with either 20mm or 30 mm diameter PVC or steel rollers mounted in a mild steel side frame with a powder coated finish. We can manufacture with a roller pitch to suit your requirements, with a minimum pitch of 25mm. This series comes with many options & accessories including lift up access gates, bends, side guides, joining plates and connecting hooks (find all series options and accessories listed below).

Gravity conveyors are essential in a wide range of industries where it is necessary to transport items from A to B. The 200 series gravity conveyor helps to do this quickly, safely and with ease. The 200 series is proven to dramatically decrease the time it takes to transfer light duty products.

Ocon Conveyors manufacture a large selection of gravity conveyors in its Speedtrack range, if the 200 Series does not suit your requirement please view alternatives. We have eight different options in our gravity conveyor range suit many applications including light, medium and heavy duty conveyors, find all of our related products below.

Product comes with 1 year warranty

Product Overview

Side Frame Material	Mild steel & Stainless steel options
Side Frame Finish	Mild Steel = Powder coated Stainless Steel = Self colour
Side Frame Detail	Angle = 50x25x3mm
Roller Diameter	20mm & 30mm options
Roller Material	PVC & Mild steel zinc plated options
Roller Pitch	25, 30, 35, 40, 45, 50, 60 & 75mm options
Roller Rating	PVC 20mm = 7kg & PVC 30mm = 12kg BZP 20mm = 7kg & BZP 30mm = 50kg
Standard Widths	100, 150, 200, 300, 400 & 500mm
Series options / accessories	Straight modules 45 & 90 degree bends Lift up access gate Sideguides Endstop plate & Endstop roller Joining plates Connecting hooks Fixed support stands Mobile support stands Screw foot / adjustable leveling support Stands Twin & Multi-Tier Support stands

Accessories & Features

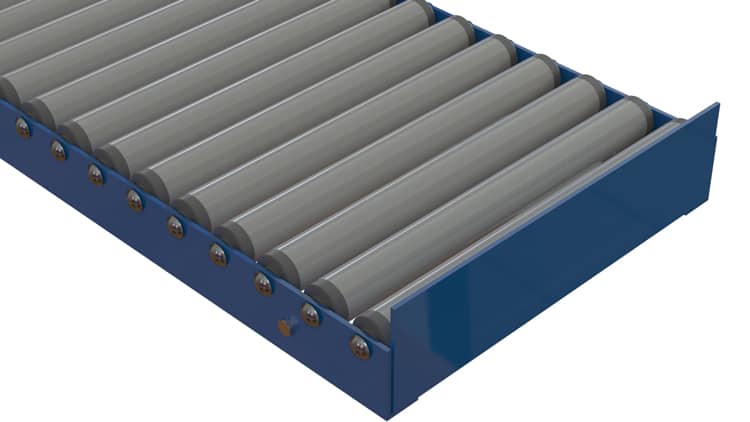

Endstop Plate
Ferrule Foot Support Stand
Fixed Support Stand
Gate
Mobile Support Stand
Multi Roller Conveyor
PVC Roller Conveyor
Screw Foot Support Stand
Sideguide

1 2 3 4 5 6 7 8 9

Video

FAQ’s

What is a roller pitch?

A roller pitch is the distance from the centre of a roller to the centre of the next roller.

What roller pitch do I require?

As a general rule, the base of the box should always cover 3 rollers. For example, a 300mm long product would require a minimum pitch of 100mm (300mm ÷ 3 rollers = 100mm).

What are the advantages of PVC conveyor roller?

Our PVC roller is a free-running, low inertia roller, so is perfect for lightweight products. It is also a more cost-effective conveyor compared to the steel roller

What are the advantages of a steel roller conveyor?

Steels roller are perfect for heavier products as the tube and bearings have a higher capacity rating.

Can you manufacture to suit any length of the conveyor?

Yes, we can manufacture to suit your requirements. However, a length is always divisible by the pitch. For example, a request for 10,000mm at 75mm pitch would be manufactured at 9,975mm long (usually supplied in 3x 3,000mm & 1x 975mm sections)

What are the advantages of skate wheel conveyors?

Skate wheels are extremely free running, so light product can convey with the conveyor set at a small angle. They are also fantastic at tracking product around bends. Another benefit is you can put products side by side & they will run independently. Useful Tip – Flat based products are required when using a skate wheel conveyor.

What slope should I set the gravity conveyor?

The angle a gravity conveyor is set at depends on the number of factors. Three main considerations are the weight of the product, the base of the product and the speed you wish the product to travel. These factors contribute massively to the slope that is should be set at.
