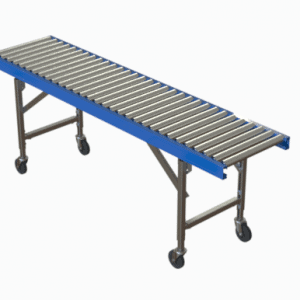

100 Series

Gravity Conveyor

Light duty aluminium framed gravity roller conveyor. Perfect for conveying small products, options with small rollers at close pitch!

Product Overview

Side Frame MaterialAluminium
Side Frame FinishSelf colour aluminium
Side Frame DetailAngle = 50x25x3mm
Roller Diameter20mm & 30mm options
Roller MaterialPVC
Roller Pitch25, 30, 35, 40, 45, 50, 60 & 75mm options
Roller Rating20mm = 7kg & 30mm = 12kg
Skate Wheel RatingPVC = 15kg & BZP = 15kg
Standard Widths100, 150, 200, 300, 400 & 500mm
Series options / accessoriesStraight modules
45 & 90 degree bends
Lift up access gate
Sideguides
Endstop plate & Endstop roller
Joining plates
Connecting hooks
Fixed support stands
Mobile support stands
Screw foot / adjustable leveling support Stands
Twin & Multi-Tier Support stands

Accessories & Features

  • Conveyor Gate

  • Endstop

  • Ferrule Foot Support Stand

  • Horizontal Bend

  • Mobile Support Stand

  • Multi Roller

  • PVC Rollers

  • Screw Foot Support Stand

  • Sideguides
