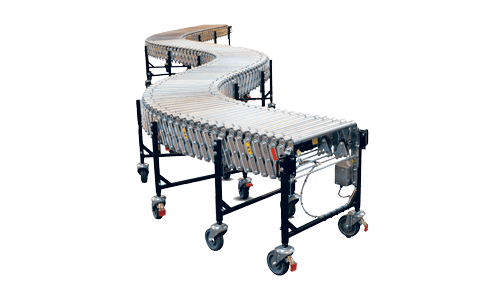

Powered Roller Flexible Conveyor

Powered flexible conveyor. Band driven roller extending concertina conveyor. Adjustable in height & length. Can be manipulated into bends or straights.

Product Overview

Roller Diameter40 or 50mm
Roller MaterialMild steel BZP
Roller Pitch125mm when fully extended (pitch restrictions options available for smaller products)
Rating150kg per liner metre – level
Standard Heights800 – 1,100mm
Standard Widths450, 600, 750 & 900mm
Standard Lengths40 Dia Roller model:
2,500mm open – (900mm closed)
3,700mm open – (1,300mm closed)
4,900mm open – (1,700mm closed)
6,100mm open – (2,100mm closed)
7,400mm open – (2,600mm closed)
8,600mm open – (3,000mm closed)
9,800mm open – (3,400mm closed)
11,000mm open – (3,800mm closed)
12,200mm open – (4,200mm closed)
13,500mm open – (4,600mm closed)
14,700mm open – (5,000mm closed)
15,900mm open – (5,400mm closed)
17,100mm open – (5,800mm closed)
18,300mm open – (6,300mm closed)
19,600mm open – (6,700mm closed)

50 Dia Roller model:
2,500mm open – (1,100mm closed)
3,700mm open – (1,600mm closed)
4,900mm open – (2,100mm closed)
6,100mm open – (2,600mm closed)
7,400mm open – (3,200mm closed)
8,600mm open – (3,700mm closed)
9,800mm open – (4,200mm closed)
11,000mm open – (4,700mm closed)
12,200mm open – (5,200mm closed)
13,500mm open – (5,800mm closed)
14,700mm open – (6,300mm closed)
15,900mm open – (6,800mm closed)
17,100mm open – (7,300mm closed)
18,300mm open – (7,800mm closed)
19,600mm open – (8,400mm closed)

Series Options / AccessoriesImpact Loading Table / Impact loading cart
Sideguides
200mm castors
Connecting hooks
Endstop Plate & Endstop Roller
Mobile support stands – fully adjustable
Photo Cell Product Stop
Optical product flow – Photo cell automated control
Zero Pressure accumulation – zoned parcel flow
Indexing – Conveyor starts when leaded edge detected & stops when trailing end is detecting, plus a time delay – brilliant for end of line storage buffering
Can be joined by other conveyors to make system

Accessories & Features

  • Robust Castors

  • Powered Flexible

  • Photo Cell

  • Joining System

  • Connecting Hook
